	AC2000-1920		AC3000-3840		AC5000-5120
Battery pack specifications
Battery pack specifications	25.6V75Ah		25.6V150Ah		51.2V100Ah
Combination mode	8S1P		8S2P		16S2P
Battery type	LFP
Battery models	75AH-PL20185265		75AH-PL20185265		50AH-PL13162225
Cycle life	≥2500,80%DOD
Charging mode	CC-CV
Allows maximum charge current	40A		75A		50A
Maximum discharge current allowed	Continue 150A		Continue150A		Continue100A
Maximum instantaneous current	225A		300A		200A
Charging voltage	29.2V		29.2V		58.4V
AC output
Voltage specifications	220V	110V	220V	110V	220V	110V
Minimum	200	100	200	100	200	100
Maximum	240	100	240	100	240	100
Frequency	50HZ	60HZ	50HZ	60HZ	50HZ	60HZ
Output Power
220V50HZ	Rated power	2000W	3000W		5000W
	Peak power	4000W	6000W		10000W
110V60HZ	Rated power	1600W	2400W		4000W
	Peak power	3200W	4800W		8000W
DC output parameters
Output port		USB QC3.0
		USB PD
		Cigarette lighter
Output specifications		MAX 22.5W
		MAX 36W
		MAX 12V/10A
Error		±3%
Environmental and storage requirement
Temperature		The operatingtemperaturewas0°C~45°C
		Storage ambient temperature:-20℃~60℃
Humidity		Working Time:25%~80%relative humidity (non-condensation)
		Storage:10%~90%relative humidity (non-condensation)
Products size:		460×360×195(±2mm),NW:22kg	570×400×230(±2mm),NW:42kg		660×550×240(±2mm),NW:49.5kg

Features:

1、Pure sine wave
2、Free-retractable portable tie rod
3、Automotive grade lithium iron phosphate celt

Widely used；Household appliances of all sizes work.
Lithium iron；Safe and sound.
Multi-port output；Don't be afraid of insufficient interfaces.
The pulley moves effortlessly；Let the electricity go with you.
Sine wave.output；No damage to the equipment.
Apply to Various Outdoor Equipment；Pull Rod box power ultra-portable,not limited by the origin, where you want to charge charge where.

Trolley Case Portable Power Station

Trolley Box Type Outdoor Portable Power Station 2000/3000/5000w

Hjne-Ac2000-1920 Trolley Box Type Portable Power Station 2000w 1920wh

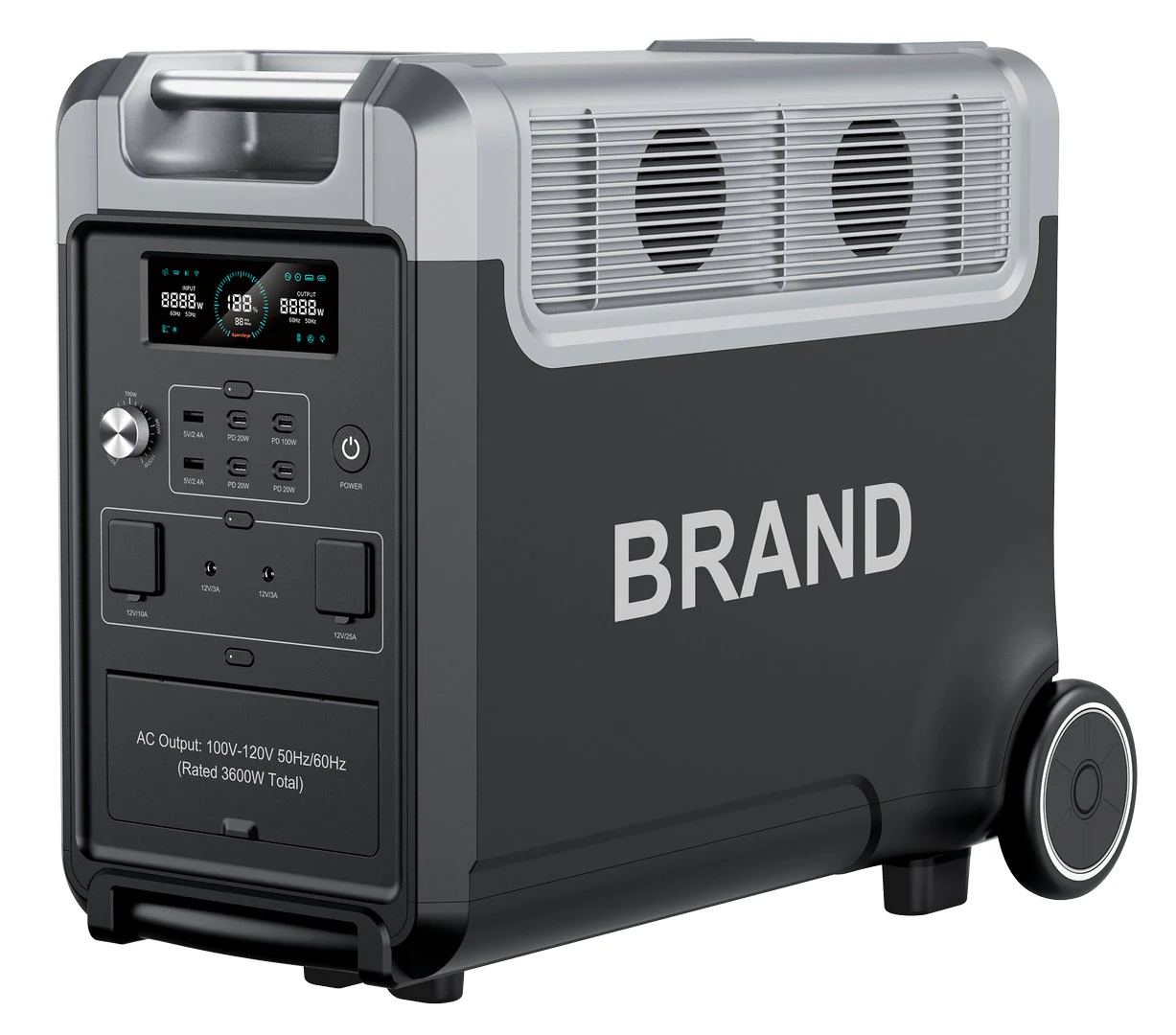

N051-Trailer Power Box for Camping 3600w 3840wh
